High Gain RFID Narrow Beam Antenna / Wide Beam Antenna Low VSWR 902-928MHz

Name: High Gain RFID Narrow Beam Antenna Wide Beam Antenna Low VSWR 902928MHz
Brand: broadradio
Price: 1 USD

Quality High Gain RFID Narrow Beam Antenna / Wide Beam Antenna Low VSWR 902-928MHz wholesale

Brand Name : broadradio

Model Number : BRA-15

Place of Origin : China Shenzhen

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Paypal

Delivery Time : 3-5works

Packaging Details : Standard Export Carton, Foam and Protective Film

Frequency Range : 902MHz～928MHz

name : Wide Beam Antenna

Gain : >8dBic

Polarization : Circular Polarization

Front-to-Back Ratio : 20dB

Size : 200mm×200mm×32mm

Weight : 0.85kg (bracket excluded)

Color : Milk-white

Contact Now

902MHz～928MHz RFID Narrow beam antenna wide beam, high gain, low VSWR

Product Function and Features

Impact resistance, anti-vibration, wide beam, high gain, low VSWR and etc.;

Pleasing appearance with small size, double waterproof design with waterproof ring and silica gel, rib reinforcement design for shell, suitable for various severe environments.

Product Applications

BRA-15 Antenna is of convenient application in access control, warehousing, logistics, retail and other UHF RFID application fields.

Performance Specifications

Frequency Range	902MHz～928MHz
VSWR	≤1.3:1
Gain	>8dBic
Beamwidth	89°x89°
Polarization	Circular Polarization
Front-to-Back Ratio	20dB
Relative humidity	5%～95%
Impedance	50±1Ω
Connector Type	RP-TNC Female

Mechanical Specifications

Size	200mm×200mm×32mm
Weight	0.85kg (bracket excluded)
Material	Aluminum alloy, engineering plastics ASA
Color	Milk-white
Production Class	IP65
Operating Temperature	-40℃~+ 85℃
Storage Temperature	-40℃~+ 85℃

High Gain RFID Narrow Beam Antenna / Wide Beam Antenna Low VSWR 902-928MHz

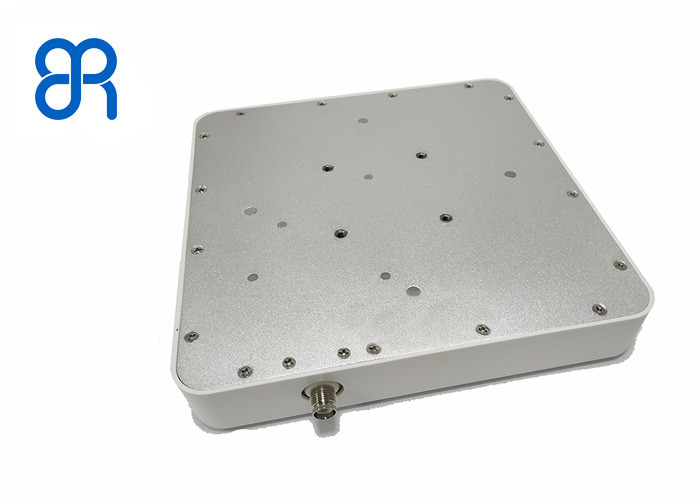

Figure 1. Antenna Photo

Mounting Dimensions

High Gain RFID Narrow Beam Antenna / Wide Beam Antenna Low VSWR 902-928MHz

Broadradio is a high-tech enterprise focusing on R&D, production and sales of UHF rfid hardware for 10 years. It has excellent independent innovation capability, obtained many national and international patents, and has more than 10,000 square meters of R&D production in South China Base. more than 500 production staff to ensure production capacity, and equipped with more than 20 high-standard test equipment to ensure product quality, is your ideal partner.
